Mineral Blast Abrasives for Professional Surface Treatment

Mineral blast abrasives are the most versatile group in blast technology. From white and brown fused alumina for derusting, roughening and more, to glass beads for fine matting and peening, to specialised granulates for the dental industry – each material has its optimal application. Werner Rumler offers a comprehensive range of mineral blast abrasives in all standard grain sizes. Whether automotive, aerospace or metal fabrication industry: we provide personal and individual advice on the right blast abrasive, the right grain size, hardness and grain shape for your process. All our products are characterised by consistent quality, long service life and precise sieve analyses. Benefit from over 50 years of experience in blast technology – we deliver quickly and reliably throughout Germany and Europe.

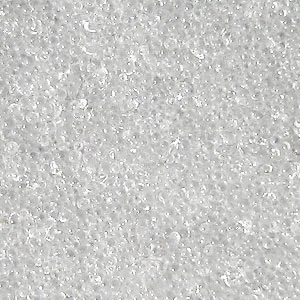

Glass Beads round

Product Information Blast Media

1 – 50 µm to 400 – 800 µm

Description: Clear and highly round glass microspheres for use as blasting media in surface treatments
Advantages: Microbeads small, spherically shaped glass beads are the ideal medium for both smooth and efficient surface treatments. glass beads are characterized by a high degree of roundness, purity and clarity. Their shape results in material-friendly impacts leaving the work piece surface intact. The glass material is a clean and neutral medium that does not intermingle with the treated material glass beads do not cause silicosis. They are available in a wide range of grain sizes, which guarantees tailor-made sieving's for the desired surface treatment applications.
Use: Accelerated by means of air and/or liquid, the glass beads are projected onto the surface of a work piece in order to clean, embellish, matten or compact it. A detailed list of the numerous uses is available on request. Blasting with glass microspheres is an economic and environmentally friendly alternative to manual or chemical surface treatments. glass beads offer optimum flexibility; both for the materials to be treated and the effects to be achieved. The beads are appropriate for use with dry or wet blasting equipment.

Standard Grain Sizes

GRAIN RANGE (µm)	GRAIN RANGE (µm)
1–50	150–250
40–70	200–300
50–105	250–420
70–110	300–400
90–150	400–600
100–200	600–800

Chemical Composition

CONSTITUENT	SHARE
SiO₂	min. 65 %
Al₂O₃	0.5 – 2 %
Fe₂O₃	max. 0.15 %
MgO	min. 2.50 %
CaO	min. 8 %
Na₂O	min. 14 %
Other	max. 2 %

Properties

PROPERTY	VALUE
Material	Soda-lime glass, tempered, lead-free
Hardness	Mohs 6 – 7
Spec. weight	approx. 2.50 g/cm³
Bulk density	approx. 1.50 kg/l

Possible Blasting Systems

Blasting system
Pressure blasting machines
Injector blasting machines

Packaging

25 kg bags on pallets (max. 40 bags per pallet), delivery quantity from 1 x 25 kg in a box.
Loose in big bags on pallets upon request.

Downloads

Product information glass beads History of GlassShot Glass beads application

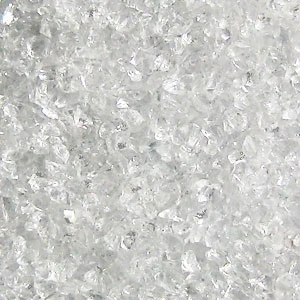

Glass Granulate angular

Product Information Blast Media

40 – 80 µm to 400 – 1400 µm

Description: Non-metallic, mineral blasting medium made of glass.
Applications: Used for smooth derusting, descaling, and cleaning of metal materials and for woodworking with finest degree of roughening. Best surface preparation creating optimal adhesion for subsequent coating or glueing processes. Particularly suitable where media loss is unavoidable.
Use: Injector and pressure blasting

Standard Grain Sizes

GRAIN RANGE (µm)	GRAIN RANGE (µm)
80–150	300–600
100–200	300–800
200–300	600–1000
300–400	400–1400
300–500

Chemical Composition

CONSTITUENT	SHARE
SiO₂	min. 65 %
Al₂O₃	0.5 – 2 %
Fe₂O₃	max. 0.15 %
MgO	min. 2.50 %
CaO	min. 8 %
Na₂O	min. 14 %
Other	max. 2 %

Properties

PROPERTY	VALUE
Material	Soda-lime glass, lead-free
Hardness	Mohs approx. 6
Spec. weight	approx. 2.50 g/cm³
Bulk density	approx. 1.50 kg/l

Possible Blasting Systems

Blasting system
Pressure blasting machines
Injector blasting machines

Packaging

25 kg bags on pallets (max. 40 bags per pallet), delivery quantity from 1 x 25 kg in a box.

Downloads

Product information glass granulate

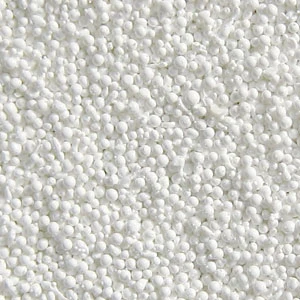

Ceramic Beads Zirblast / Zirshot

Product Information Blast Media

0 – 63 µm to 850 – 1180 µm

Description: Cleaning, surface finishing, wet blasting, shot peening
Applications: Careful cleaning of sensitive surfaces (moulds, tools, motor parts, turbine vanes), shot peening of metal surfaces, surface finishing.
Use: Centrifugal wheel and compressed air systems.

ZIRBLAST – Grain Sizes

DESIGNATION	GRAIN RANGE
B205	0 – 63 µm
B125	0 – 125 µm
B120	70 – 125 µm
B60	125 – 250 µm
B40	250 – 425 µm
B30	425 – 600 µm
B20	600 – 850 µm

ZIRSHOT – Grain Sizes

DESIGNATION	GRAIN RANGE
Z150	150 – 210 µm
Z210	210 – 300 µm
Z300	300 – 425 µm
Z425	425 – 600 µm
Z600	600 – 850 µm
Z850	850 – 1180 µm

Chemical Composition

CONSTITUENT	SHARE
ZrO₂	69 %
SiO₂	31 %
Other	max. 0.1 %

Properties

PROPERTY	VALUE
Hardness	approx. 7-7.5 Mohs
Spec. weight	approx. 3.80 kg/l
Bulk density	approx. 2.30 kg/l

Possible Blasting Systems

Blasting system
Pressure blasting machines
Injector blasting machines
Centrifugal wheel blasting machines

Packaging

25 kg PE canisters or bags on pallets (max. 40 bags per pallet), delivery quantity from 1 x 25 kg in a box.

Downloads

Product information ceramic beads

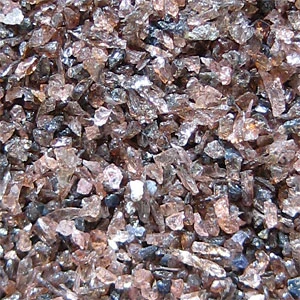

Brown Aluminium Oxide

Product Information Blast Media

FEPA F10 to F220

Description: Non-metallic, high-quality synthetic fine blasting medium made of pure aluminum oxide.
Applications: Descaling and detindering of iron and steel constructions, to roughening of metal surfaces for subsequent application of coatings; cleaning, deburring and matting of materials.
Use: Pressure blasting

Standard Grain Sizes (FEPA)

DESIGNATION	GRAIN RANGE
F10	1680 – 2380
F12	1410 – 2000
F14	1190 – 1680
F16	1000 – 1410
F20	841 – 1190
F22	710 – 1000
F24	595 – 841
F30	500 – 707
F36	420 – 595
F40	354 – 500
F46	297 – 420

DESIGNATION	GRAIN RANGE
F54	250 – 354
F60	210 – 297
F70	177 – 250
F80	149 – 210
F90	125 – 177
F100	105 – 149
F120	88 – 125
F150	63 – 105
F180	53 – 88
F220	44 – 74

Metric Grain Sizes

GRAIN RANGE (µm)	GRAIN RANGE (µm)
0.06 – 0.12 mm	1.00 – 2.00 mm
0.12 – 0.25 mm	1.00 – 3.00 mm
0.25 – 0.50 mm	2.00 – 4.00 mm
0.50 – 1.00 mm

Chemical Composition

CONSTITUENT	SHARE
Al₂O₃	93.5 – 95 %
SiO₂	0.5 – 1.8 %
CaO	0.4 – 0.8 %
K₂O	0.1 %
TiO₂	2.5 – 3.2 %
Fe₂O₃	0.4 %
MgO	0.4 – 0.8 %
Na₂O	0.03 %

Properties

PROPERTY	VALUE
Hardness	Mohs approx. 8 – 9
Spec. weight	approx. 4.0 g/cm³
Bulk density	approx. 1.5 – 1.7 kg/l

Possible Blasting Systems

Blasting system
Pressure blasting machines
Injector blasting machines

Packaging

25 kg bags on pallets (max. 40 bags per pallet), minimum delivery quantity from 1 x 25 kg in a box. On request loose in big bags on pallets.

Downloads

Product information brown fused alumina

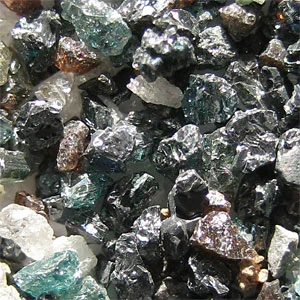

Reclaimed Aluminium Oxide

Product Information Blast Media

FEPA F16 to F220

This non-metallic, almost iron-free, high-quality blasting medium is a mixture of normal and white fused alumina dusts as well as ceramic grinding disks, which has undergone extensive processing.
Ideally suited for descaling, deburring, cleaning and roughening, e.g. of investment castings, or for satin finishing as a finishing process for stainless steel and glass surfaces.

Standard Grain Sizes (FEPA)

FEPA NO.	GRAIN RANGE (µm)
F16	1000 – 1410
F20	841 – 1190
F22	710 – 1000
F24	595 – 841
F30	500 – 707
F36	420 – 595
F40	354 – 500
F46	297 – 420
F54	250 – 354

FEPA NO.	GRAIN RANGE (µm)
F60	210 – 297
F70	177 – 250
F80	149 – 210
F90	125 – 177
F100	105 – 149
F120	88 – 125
F150	63 – 105
F180	53 – 88
F220	44 – 74

Chemical Composition

CONSTITUENT	SHARE
Al₂O₃	88.10 %
SiO₂	6.80 %
CaO	0.30 %
TiO₂	0.70 %
Fe₂O₃	0.30 %
MgO	0.30 %
SiC	5.80 %

Properties

PROPERTY	VALUE
Hardness	Mohs approx. 8 – 9
Spec. weight	approx. 4.0 g/cm³
Bulk density	approx. 1.5 – 1.7 kg/l

Possible Blasting Systems

Blasting system
Pressure blasting machines
Injector blasting machines

Packaging

25 kg bags on pallets (max. 40 bags per pallet), minimum delivery quantity 1 x 25 kg in a box.
On request, loose in big bags on pallets.

Downloads

Product information regenerated corundum

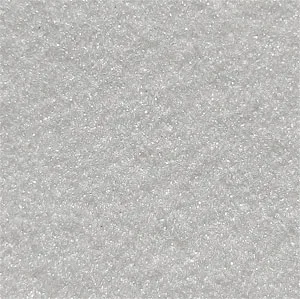

White Fused Alumina macro

Product Information Blasting Media

FEPA F10 to F220

Description: Non-metallic, mineral blasting medium made of pure aluminum oxide.
Applications: Used for smooth cleaning, deburring and deadening of high quality metal and austenitic materials in the fields of aerospace, dental, galvano, motor, reactor and laboratory technologies. For work pieces of extreme hardness.
Use: Pressure blasting

Standard Grain Sizes (FEPA)

DESIGNATION	GRAIN RANGE
F10	1680 – 2380
F12	1410 – 2000
F14	1190 – 1680
F16	1000 – 1410
F20	841 – 1190
F24	595 – 841
F30	500 – 707
F36	420 – 595
F40	354 – 500
F46	297 – 420

DESIGNATION	GRAIN RANGE
F54	250 – 354
F60	210 – 297
F70	177 – 250
F80	149 – 210
F90	125 – 177
F100	105 – 149
F120	88 – 125
F150	63 – 105
F180	53 – 88
F220	44 – 74

Metric Grain Sizes

GRAIN RANGE (µm)	GRAIN RANGE (µm)
0.25 – 0.50 mm	0.50 – 1.00 mm

Chemical Composition

CONSTITUENT	SHARE
Al₂O₃	99.7 %
SiO₂	< 0.1 %
K₂O	< 0.04 %
CaO	< 0.05 %
Fe₂O₃	0.06 %
Na₂O	0.12 %

Properties

PROPERTY	VALUE
Hardness	Mohs approx. 8 – 9
Spec. weight	approx. 4.0 g/cm³
Bulk weight	approx. 1.5 – 1.7 kg/l

Possible Blasting Systems

Blasting system
Pressure blasting machines
Injector blasting machines

Packaging

25 kg bags on pallets (max. 40 bags per pallet), minimum delivery quantity 1 x 25 kg in a box.
On request, loose in big bags on pallets.

Downloads

Product information white fused alumina

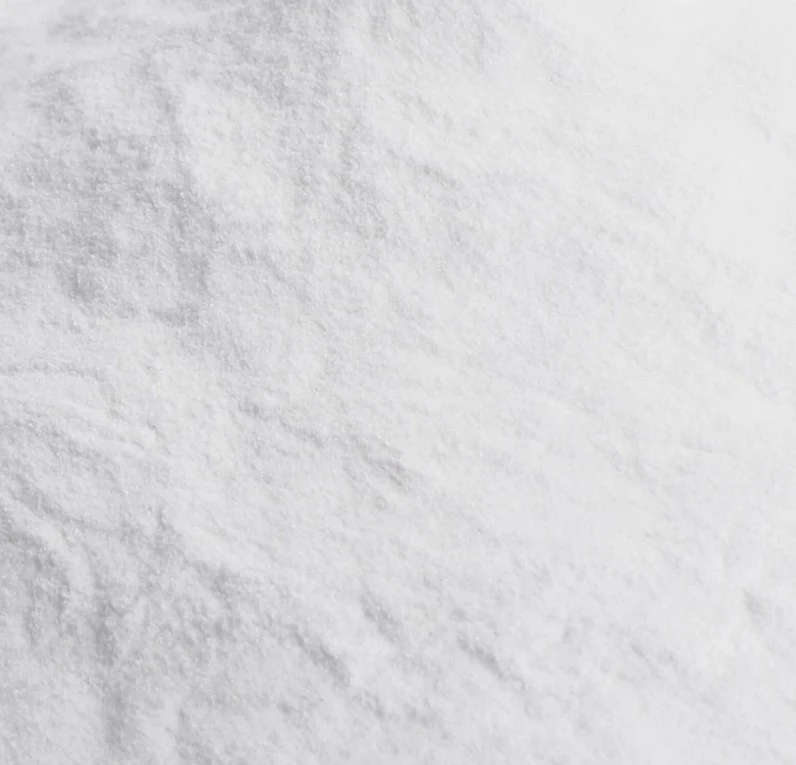

White Fused Alumina Micro

Product Information Blasting Media

FEPA F230 to F1200

Iron-free, angular and white reusable blasting media made of high-purity aluminium oxide. Ideal for lapping, honing, blasting, deburring, cleaning and matting high-quality materials.
Due to its properties such as highest degree of purity, extreme hardness and grain shape, white fused alumina micro also fully meets the requirements of industries with the highest demands, such as medical technology, optics or cosmetics.

Standard Grain Sizes (MICRO)

DESIGNATION	GRAIN RANGE
F230	50.0 ± 3.0
F240	42.0 ± 2.0
F280	34.5 ± 1.5
F320	27.7 ± 1.5
F360	21.6 ± 1.0
F400	16.5 ± 1.0
F500	12.3 ± 1.0
F600	9.0 ± 1.0
F800	6.3 ± 1.0
F1000	4.5 ± 0.8
F1200	3.1 ± 0.5

Chemical Composition

CONSTITUENT	SHARE
Al₂O₃	99.50 %
SiO₂	< 0.20 %
K₂O	< 0.01 %
CaO	< 0.05 %
Fe₂O₃	0.01 %
Na₂O	0.18 %

Product Properties

PROPERTY	VALUE
Hardness	Mohs approx. 9
Spec. weight	approx. 4.0 g/cm³
Bulk weight	approx. 1.5 – 1.7 kg/l

Possible Blasting Systems

Blasting system
Pressure blasting machines
Injector blasting machines

Packaging

25 kg bags on pallets (max. 40 bags per pallet), delivery quantity from 1 x 25 kg in carton.

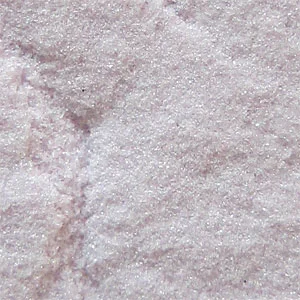

Pink Fused Alumina

Product Information Blasting Media

On request

This non-metallic, high-quality synthetic fine blasting medium made of pure aluminum oxide is suitable for the deburring, cleaning, grinding and matting of high-quality materials, including hardened materials.
Due to the addition of chromium oxide, the material has a very long service life and is tougher than white fused alumina. Even after repeated use/circulation, the reusable material remains sharp-edged, achieving a high removal effect with short blasting times

Standard Grain Sizes (FEPA)

FEPA NO.	GRAIN RANGE (µm)
F14	1410 – 2000
F16	1000 – 1410
F20	841 – 1190
F22	707 – 1000
F24	595 – 841
F30	500 – 707
F36	420 – 595
F40	354 – 500
F46	297 – 420
F54	250 – 354

FEPA NO.	GRAIN RANGE (µm)
F60	210 – 297
F70	177 – 250
F80	149 – 210
F90	125 – 177
F100	105 – 149
F120	88 – 125
F150	63 – 105
F180	53 – 88
F220	44 – 74
F240	17 – 62

Chemical Composition

CONSTITUENT	SHARE
Al₂O₃	99.52 %
Cr₂O₃	0.25 %
Fe₂O₃	0.05 %
Na₂O	0.18 %
Colour	Pink
Shape	sharp-edged

Properties

PROPERTY	VALUE
Hardness	Mohs approx. 9
Spec. weight	approx. 4.0 g/cm³
Bulk weight	approx. 1.35 – 1.73 kg/l

Possible Blasting Systems

Blasting system
Pressure blasting machines
Injector blasting machines

Packaging

25 kg bags on pallets (max. 40 bags per pallet), minimum delivery quantity 1 x 25 kg in a box.
On request, loose in big bags on pallets.

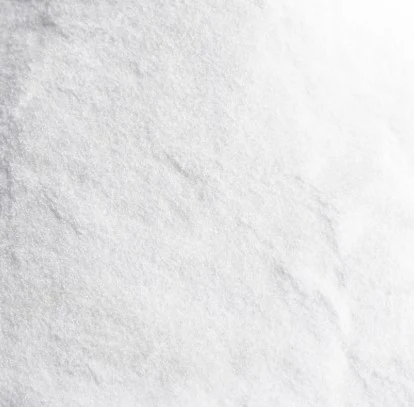

Matting Granulate

Product Information Blasting Media

FEPA F10 to F220

Non-metallic high-quality matting granulate made of pure aluminium oxide. Especially suitable for matting aluminium rims as paint preparation, but also for blasting high-quality materials made of stainless steel, brass, aluminium etc. In the fine grain gradations between F 100 – F 220 this granulate is particularly suitable for the gentle vortex blasting technique. With this process the finest surfaces are achieved, e.g. for processing and matting aluminium rims, decorative blasting of high-quality workpieces, parts and decorative objects.

Standard Grain Sizes (FEPA)

DESIGNATION	GRAIN RANGE
F10	1680 – 2380
F12	1410 – 2000
F14	1190 – 1680
F16	1000 – 1410
F20	841 – 1190
F24	595 – 841
F30	500 – 707
F36	420 – 595
F40	354 – 500
F46	297 – 420

DESIGNATION	GRAIN RANGE
F54	250 – 354
F60	210 – 297
F70	177 – 250
F80	149 – 210
F90	125 – 177
F100	105 – 149
F120	88 – 125
F150	63 – 105
F180	53 – 88
F220	44 – 74

Chemical Composition

CONSTITUENT	SHARE
Al₂O₃	99.70 %
SiO₂	< 0.10 %
K₂O	< 0.04 %
CaO	< 0.05 %
Fe₂O₃	0.06 %
Na₂O	0.12 %

Product Properties

PROPERTY	VALUE
Hardness	Mohs approx. 8 - 9
Spec. weight	approx. 4.0 g/cm³
Bulk weight	approx. 1.50 – 1.70 kg/l

Possible Blasting Systems

Blasting system
Pressure blasting machines
Injector blasting machines

Packaging

25 kg bags on pallets (max. 40 bags per pallet), delivery quantity from 1 x 25 kg in carton.

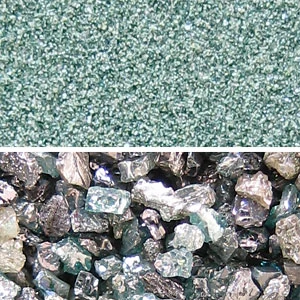

Silicon Carbide green/dark

Product Information Blasting Media

FEPA F10 to F1200

Applications: Cleaning of hard surfaces, roughening
Use: Compressed air systems.

Standard Grain Sizes (FEPA)

DESIGNATION	GRAIN RANGE
F10	1680 – 2380
F12	1410 – 2000
F14	1190 – 1680
F16	1000 – 1410
F20	841 – 1190
F24	595 – 841
F30	500 – 707
F36	420 – 595
F40	354 – 500
F46	297 – 420
F54	250 – 354
F60	210 – 297
F70	177 – 250
F80	149 – 210
F90	125 – 177
F100	105 – 149
F120	88 – 125
F150	63 – 105
F180	53 – 88
F220	44 – 74

Chemical Composition – dark

CONSTITUENT	SHARE
SiC	98.60 %
C free	0.15 %
Si	0.15 %
SiO₂	0.25 %
Fe₂O₃	0.05 %

Chemical Composition – green

CONSTITUENT	SHARE
SiC	98.80 %
C free	0.15 %
Si	0.10 %
SiO₂	0.10 %
Fe₂O₃	0.05 %

Properties

PROPERTY	VALUE
Hardness	Mohs approx. 9 – 10
Spec. weight	approx. 3.20 g/cm³
Bulk weight	approx. 1.30 kg/l

Possible Blasting Systems

Blasting system
Pressure blasting machines
Injector blasting machines

Packaging

25 kg bags on pallets (max. 40 bags per pallet), minimum delivery quantity 1 x 25 kg in a box.
On request, loose in big bags on pallets.

Downloads

Product information silicon carbide green/dark

MineralAbrasives

Mineral Blast Abrasives for Professional Surface Treatment

Glass Beads round

Glass Granulate angular

Ceramic Beads Zirblast / Zirshot

Brown Aluminium Oxide

Reclaimed Aluminium Oxide

White Fused Alumina macro

White Fused Alumina Micro

Pink Fused Alumina

Matting Granulate

Silicon Carbide green/dark

Contact

Mineral
Abrasives
