Metallic Blast Abrasives for Robust Industrial Processes

Metallic blast abrasives are the first choice for demanding applications in industry. Steel shot is excellent for shot peening and surface strengthening, while angular steel grit delivers aggressive cleaning performance with high durability. Stainless steel blast media is a ferrite-free, non-rusting medium and is preferably used in stainless steel processing – e.g. food / pharmaceutical industry and medical technology. Werner Rumler supplies metallic blast abrasives in all common grain sizes and hardness classes. Thanks to their high reusability, metallic blast abrasives are particularly economical in continuous operation. We advise you on the optimal combination of material, grain size and machine settings.

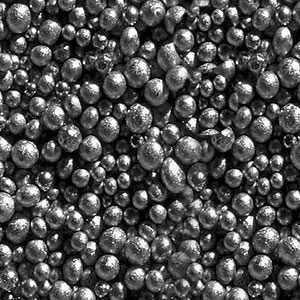

CHROME ANGULAR & CHROME-NICKEL ROUND

Product Information Metallic Blasting Media

0.05 – 0.2 mm to 1.7 – 3.3 mm

Round stainless steel chrome-nickel is suitable for cleaning blasting and shot peening of stainless steels and non-ferrous metals. The material produces a homogeneous, silky-matt surface, particularly effective on aluminium die-cast parts. A long service life with low equipment wear makes this rust-free abrasive especially economical.
Angular stainless steel chrome grit can be a worthwhile alternative to iron-free, mineral abrasives due to its extremely long service life. The angular grain shape makes it possible to prepare stainless materials for a subsequent surface coating.

Available Grain Sizes

DESIGNATION	GRAIN RANGE (mm)
No. 10	0.05 – 0.20 mm
No. 20	0.10 – 0.30 mm
No. 30	0.15 – 0.40 mm
No. 40	0.40 – 0.80 mm
No. 50	0.60 – 1.00 mm
No. 60	0.70 – 1.20 mm
No. 100	0.80 – 1.70 mm
No. 150	1.20 – 2.30 mm
No. 200	1.70 – 3.30 mm

Chemical Composition – Cr/Ni

CONSTITUENT	SHARE
Cr	16 – 18 %
Ni	8 – 9 %
C	max. 0.3 %
Si	2 %

Chemical Composition – Cr

CONSTITUENT	SHARE
Cr	27 – 30 %
Ni	0 – 2 %
C	max. 0.4 %
Si	2 %

Properties – Cr/Ni

PROPERTY	VALUE
Hardness (new material)	300 HV
Shape	round
Spec. weight	approx. 8.3 kg/l
Bulk weight	approx. 4.5 kg/l

Properties – Cr

PROPERTY	VALUE
Hardness (new material)	450 HV
Shape	irregular round
Spec. weight	approx. 8.3 kg/l
Bulk weight	approx. 4.5 kg/l

Possible Blasting Systems

Blasting system
Pressure blasting machines
Centrifugal wheel blasting machines

Packaging

25 kg bags on pallets (max. 40 bags per pallet), minimum delivery quantity from 1 x 25 kg in a box.

Downloads

Product information stainless steel cut wire

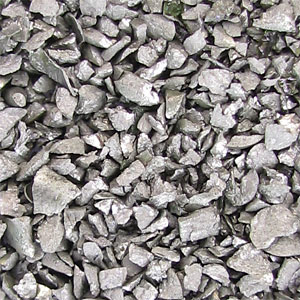

Chilled iron grit angular/round

Product Information Metallic Blasting Media

0.10 – 0.20 mm to 2.00 – 2.80 mm

De-rusting, descaling, roughening and preparing materials for subsequent coatings and paint finishes. Due to the sharp fracture edges during the blasting process, angular chilled iron grit remains permanently aggressive, which results in short blasting times and a very high abrasive performance.

Available Grain Sizes

GRAIN RANGE (µm)	GRAIN RANGE (µm)
0.10 – 0.20 mm	0.80 – 1.20 mm
0.10 – 0.30 mm	1.00 – 1.40 mm
0.20 – 0.40 mm	1.20 – 1.70 mm
0.30 – 0.60 mm	1.40 – 2.00 mm
0.40 – 0.80 mm	1.70 – 2.24 mm
0.60 – 1.00 mm	2.00 – 2.80 mm

Chemical Composition

CONSTITUENT	SHARE
C	min. 1.7 %
Si	1.00 – 1.50 %
Mn	0.30 – 1.00 %
S	0.07 – 0.17 %
P	0.10 – 0.30 %

Properties

PROPERTY	VALUE
Structure	martensitic/carbidic
Hardness	HV > 650
Spec. weight	approx. 7.00 kg/l
Bulk weight	4.3 – 4.5 kg/dm³

Possible Blasting Systems

Blasting system
Pressure blasting machines
Centrifugal wheel blasting machines (wear protection recommended)

Packaging

25 kg bags on pallets (max. 40 bags per pallet), minimum delivery quantity from 1 x 25 kg in a box. On request loose in big bags on pallets.

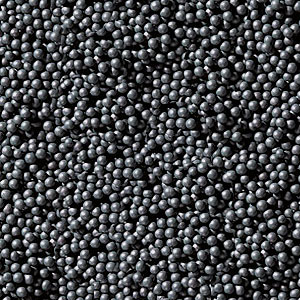

Steel shot round

Product Information Metallic Blasting Media

0.12 – 0.42 mm to 2 – 3.4 mm

Applications: Cleaning, Shot peening
Cleaning castings, deburring iron and steel de-rusting.
low-machine wear, long service life.
Use: Centrifugal wheel an compressed air systems.

Available Grain Sizes

DESIGNATION	GRAIN RANGE
S 70	0.12 – 0.42 mm
S 110	0.18 – 0.59 mm
S 170	0.35 – 0.84 mm
S 230	0.50 – 1.00 mm
S 280	0.59 – 1.20 mm
S 330	0.71 – 1.40 mm
S 390	0.84 – 1.70 mm
S 460	1.00 – 2.00 mm
S 550	1.20 – 2.00 mm
S 660	1.40 – 2.40 mm
S 780	1.70 – 2.80 mm
S 930	2.00 – 3.40 mm

Chemical Composition

CONSTITUENT	SHARE
C	0.14 – 0.18 %
Si	0.65 – 0.85 %
Mn	0.35 – 0.55 %
S	< 0.015 %
P	< 0.015 %

Properties

PROPERTY	VALUE
Structure	bainitic/martensitic
Hardness (new grain)	HRC 42.7 – 47.7
Hardness (operating mix)	HRC 46.1 – 50.5
Spec. weight	approx. 7.40 kg/l
Bulk weight	approx. 4.30 kg/l

Possible Blasting Systems

Blasting system
Pressure blasting machines
Centrifugal wheel blasting machines

Packaging

25 kg bags on pallets (max. 40 bags per pallet), minimum delivery quantity from 1 x 25 kg in a box. On request loose in big bags on pallets.

Downloads

Product information steel shot, round

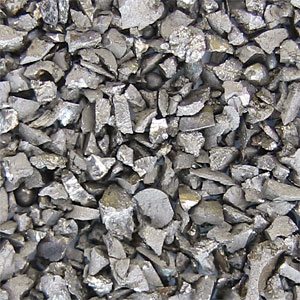

Steel grit angular

Product Information Metallic Blasting Media

0.04 – 0.18 mm to 1.70 – 2.36 mm

Applications: Cleaning, roughening Preparation of surfaces for plastic or rubber-metal combinations, blasting work where specific roughness levels have to be achieved
Use: Centrifugal wheel an compressed air systems

Available Grain Sizes

DESIGNATION	GRAIN RANGE
G 200	0.04 – 0.18 mm
G 120	0.07 – 0.30 mm
G 80	0.12 – 0.42 mm
G 50	0.18 – 0.71 mm
G 40	0.30 – 1.00 mm
G 25	0.42 – 1.18 mm
G 18	0.71 – 1.40 mm
G 16	1.00 – 1.70 mm
G 14	1.20 – 2.00 mm
G 12	1.40 – 2.36 mm

Chemical Composition

CONSTITUENT	SHARE
C	0.80 – 1.20 %
Si	min. 0.40 %
Mn	0.35 – 1.20 %
S	max. 0.05 %
P	max. 0.05 %

Properties

PROPERTY	VALUE
Hardness GH	60 + HRC
Hardness GL	54 – 61 HRC
Hardness GM	47 – 56 HRC
Spec. weight	approx. 7.4 kg/dm³
Bulk weight	approx. 4.0 – 4.5 kg/dm³

Possible Blasting Systems

Blasting system
Pressure blasting machines [GH]
Centrifugal wheel blasting machines [GL, GP] (wear protection recommended)

Packaging

25 kg bags on pallets (max. 40 bags per pallet), minimum delivery quantity from 1 x 25 kg in a box. On request loose in big bags on pallets.

Downloads

Product information steel grit, angular
