Technology that convinces
Blast Machines
Our Range
Blast Machines, 11 different series
The right solution for every need.
Whether portable blaster or compact economy cabinet for occasional use up to the large automotive container – Werner Rumler GmbH delivers blast technology that performs in practice. All machines are personally consulted, configured and delivered throughout Germany.

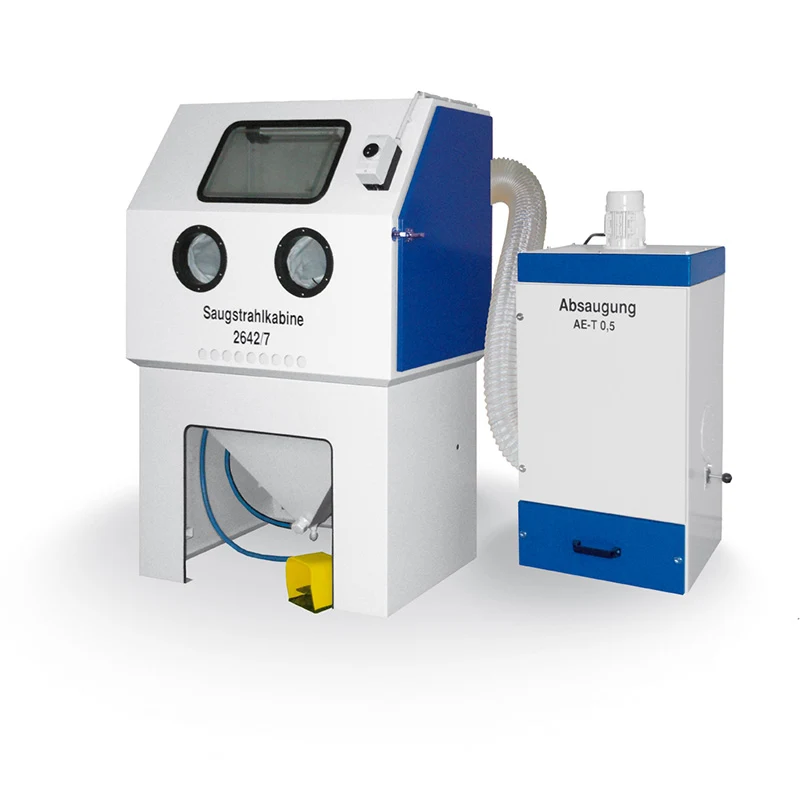

WR – Compact Blast Cabinet 2642/7
Powerful, dust-tight negative-pressure blast cabinet with abrasive recirculation for all mineral and organic blast abrasives (excluding silica sand and slag). Loading via two side doors with integrated gloves. Delivered with a separately positioned filter extraction unit.
Equipment & Features
- 2 side loading doors
- 2 built-in gloves (padded inside, rubber-coated outside)
- Large viewing window with adhesive inner protective film
- Dust-tight protective tube light, Duren glass, PL lamp 24 W
- Blast gun with injector principle and hardened tungsten carbide nozzle
- Extraction: ventilator + filter chamber with pocket filter
- Manual cleaning mechanism + dust drawer
Technical Data
| Outer dimensions | W 1200 × D 895 × H 1720 mm |
|---|---|
| Blast chamber | W 1065 × D 680 × H 940 mm |
| Weight | 125 kg |
| Compressed air connection | Hose ½" |
| Painting | Grey/Blue or custom |
| Air capacity | 800 m³/h |
| Filter motor | 0.55 kW |
| Filter area | 5 m², cotton |

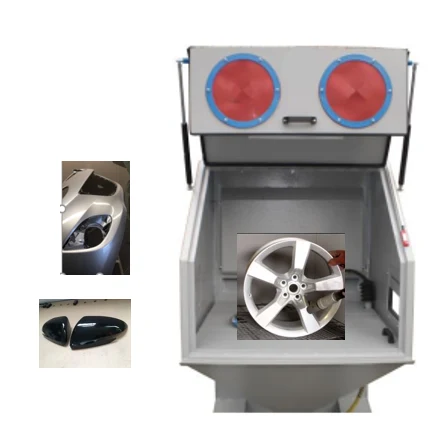

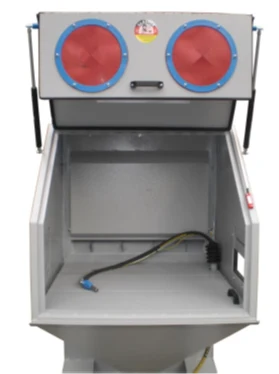

WR – Blast Cabinets for Rims/Body Parts
Space-saving, dust-tight vacuum blast cabinet in compact design, usable in injector or pressure blast configurations with high-performance blast head.
Equipment & Features
- Dust-tight – injector or pressure blast configuration selectable
- Large, stable front door with gas pressure springs for easy operation
- Door safety switch
- 2 access openings with double rubber seal
- High-performance blast head with tungsten carbide nozzle
- Integrated abrasive hopper with dosing regulator
- Bright blast chamber lighting
- Cartridge filter unit with extraction motor on cabinet rear wall
Available Models – Work Space Interior Dimensions
| Model | Width | Depth | Height | Filter |
|---|---|---|---|---|
| ECO/DSK 1000 | 1,000 mm | 900 mm | 900 mm | 0.55 kW |
| ECO/DSK 1250 | 1,250 mm | 900 mm | 900 mm | 0.55 kW |
| ECO/DSK 1500 | 1,500 mm | 1,150 mm | 900 mm | 1.1 kW |
| ECO/DSK 2000 | 2,000 mm | 1,150 mm | 900 mm | 1.1 kW |
Total cabinet height (all models): 2,200 mm

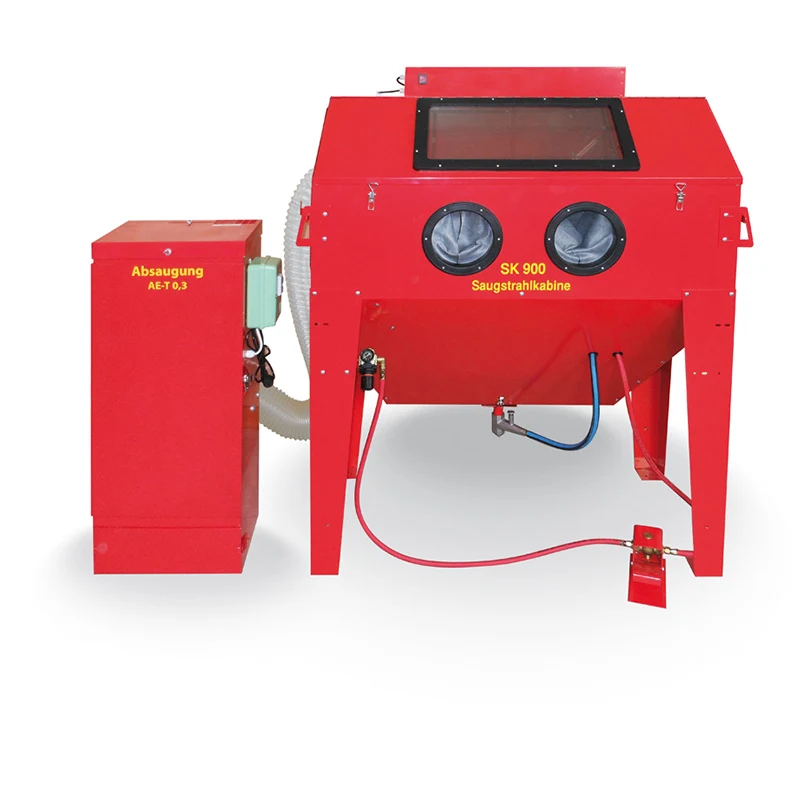

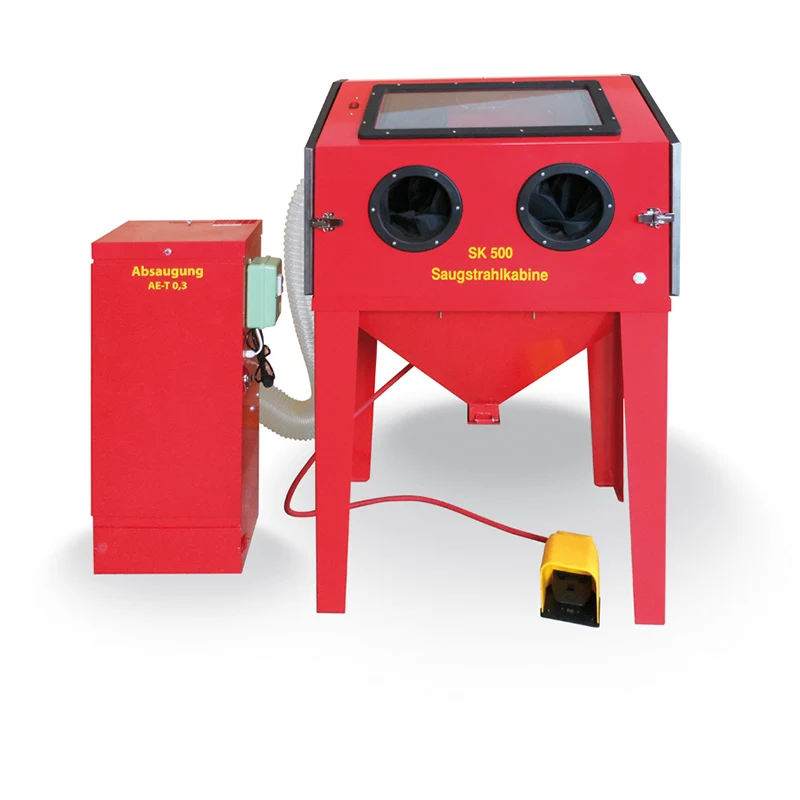

WR – Economy Blast Cabinets
Cost-effective injector blast cabinets for occasional use, suitable for engine components and body trim with low-volume work.
Equipment & Features
- Injector principle – for mineral and organic blast media
- Incl. lighting and extraction
- Delivered completely ready for connection
- Loading via side door or front flap
- Designed for occasional use
Technical Data
| Work space min. | 630 × 550 × 450 mm (W × D × H) |
|---|---|
| Work space max. | 1,200 × 860 × 815 mm (W × D × H) |

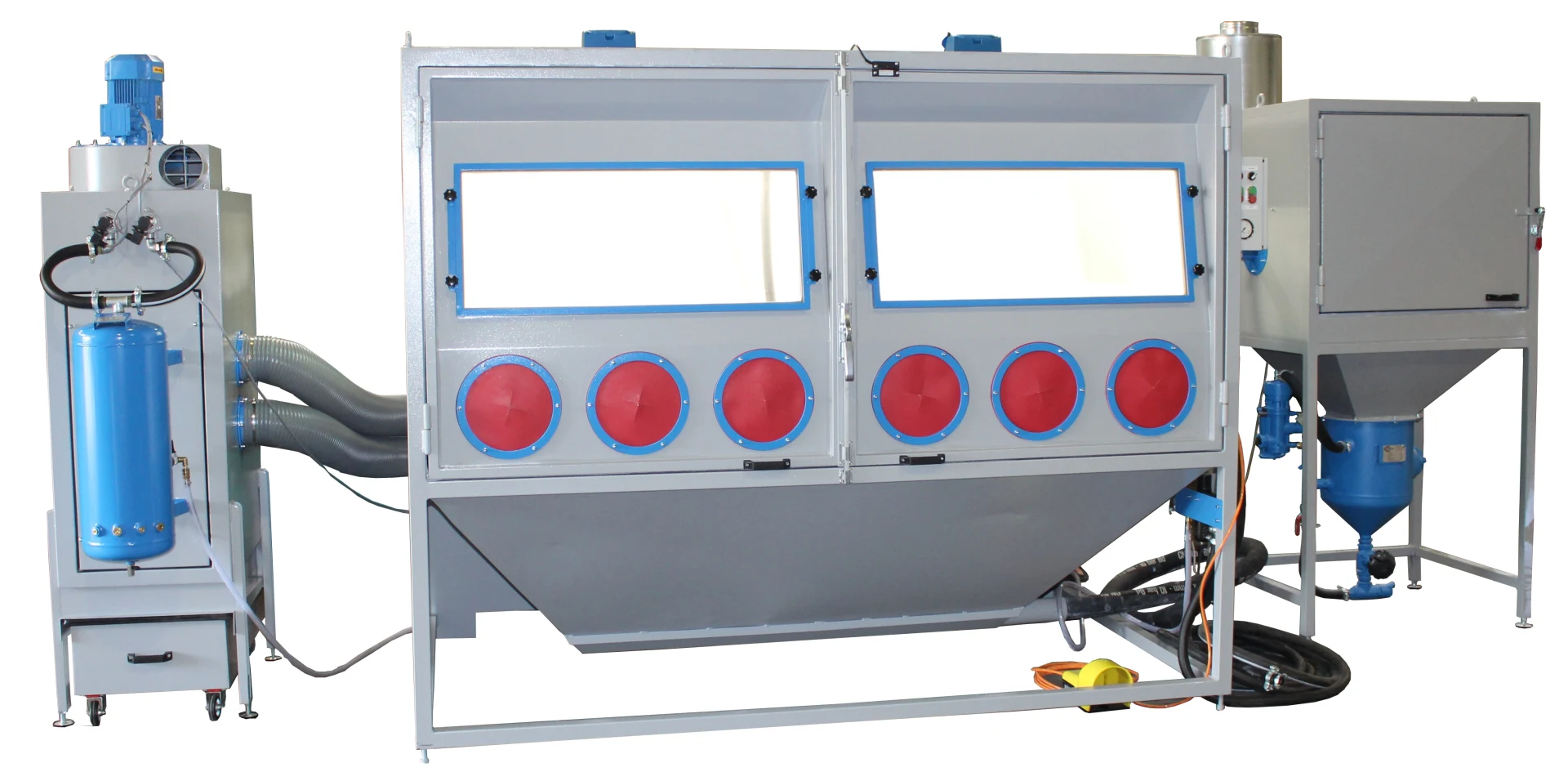

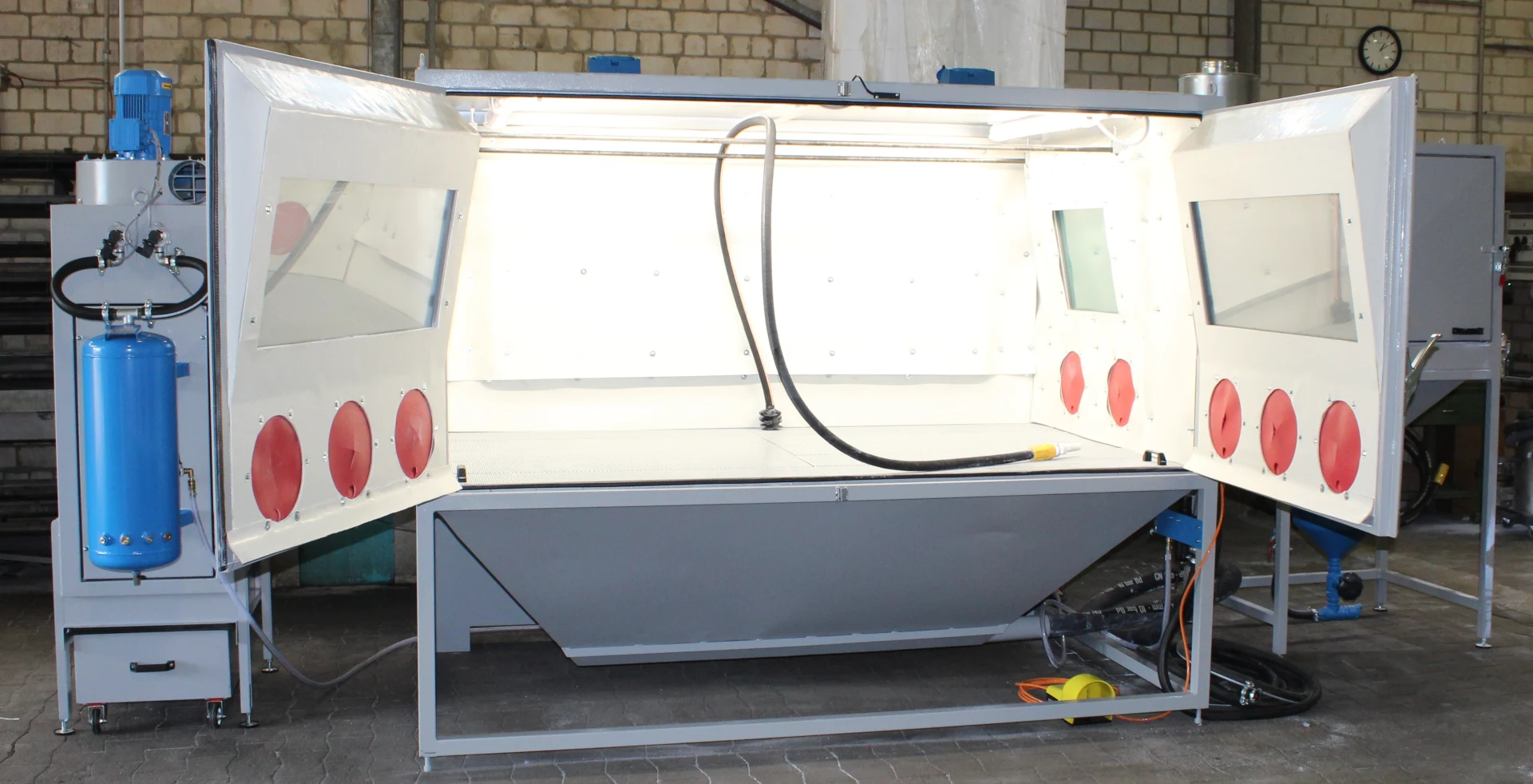

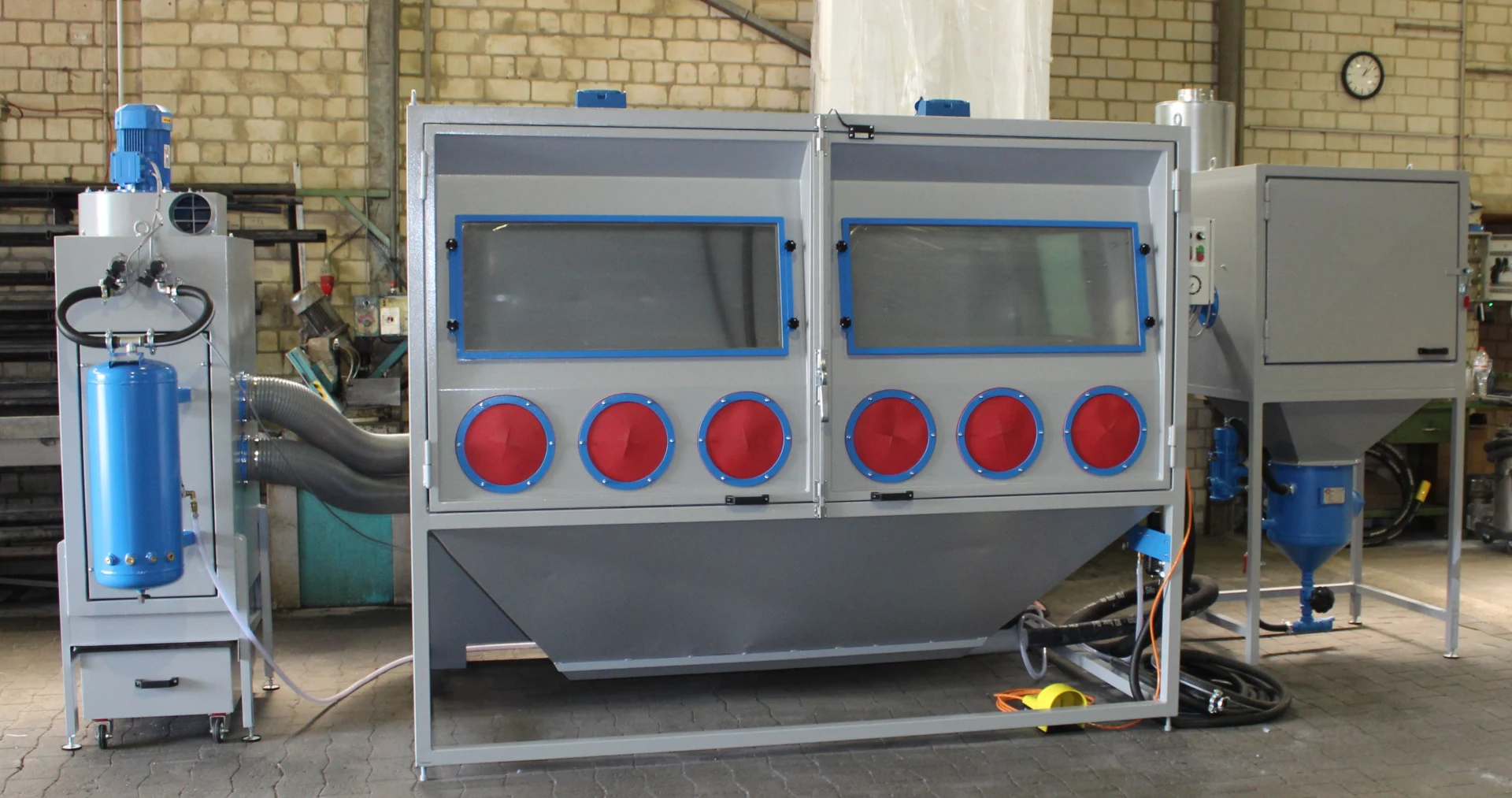

WR – Maxi Blast Cabinets Automotive Type
High-performance maxi blast cabinets in injector or pressure blast configuration with integrated abrasive preparation system for large components or paint preparation.
Equipment & Features
- Injector or pressure blast configuration selectable
- Abrasive preparation system incl. extraction motor + cartridge filter unit
- 2 oversized swing doors with large viewing windows
- 6 access openings with double rubber seal
- 2 additional workstations in the side walls
- Bright linear luminaires inside the cabinet
- Wear protection lining of cabinet inner walls
- Abrasive dosing valve with fine adjustment
Technical Data
| Model | WR-Automotive 2500 SD |
|---|---|
| Work space | W 2500 × D 1500 × H 1200 mm |
| Cabinet dimensions | W 2900 × D 1800 × H 2500 mm |
| Swing doors | 2 × approx. W 1200 × H 1100 mm |
WR – Mini Blast Container Automotive Type
Spacious blast system in container design with sandwich wall construction featuring 60 mm insulation panels and 3 mm wear protection rubber.
Equipment & Features
- Steel profile frame with crane transport eyes and forklift entry
- Sandwich wall construction, 60 mm insulation panels, 3 mm wear protection rubber
- Bright LED lamp units installed flush with ceiling
- Double door 2,200 × 2,000 mm with viewing window, rubberized inside
- Technical equipment dust-protected behind partition wall
- Filter system 2.2 kW – extraction capacity 3,300 m³/h
- Pneumatic flat conveyor floor with grating cover
- Abrasive recovery system with integrated suction unit + final filter
- Pressure blast vessel 40 liters with pneumatic dosing valve
- Electric dead-man control with 3rd signal
- 6 m hose package 3/4" with dead-man switch and couplings
- Central electrical control unit + safety shutdown
Technical Data
| Work space | 3,200 × 2,300 × 2,500 mm (L × W × H) |
|---|---|
| Outer dimensions | 4,885 × 2,435 × 2,960 mm (L × W × H) |
| Extraction capacity | 3,300 m³/h |
| Filter motor | 2.2 kW |
| Painting | Light grey |

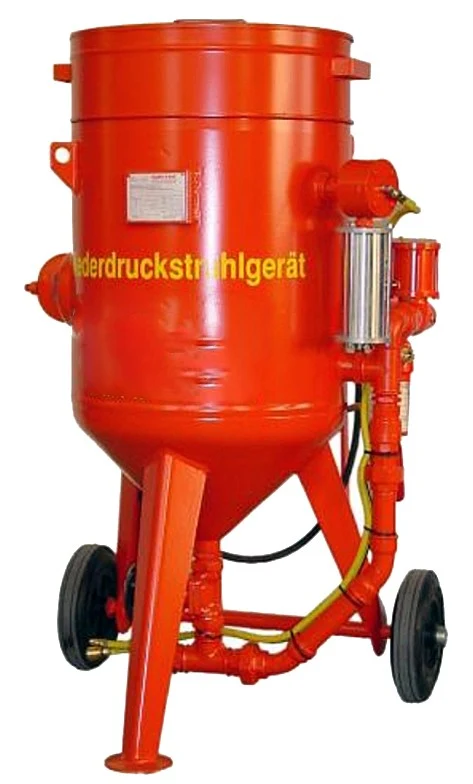

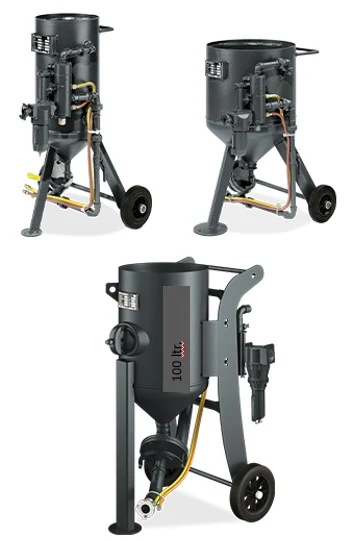

WR – Portable Blast Units
Professional mobile blast units in four configurations with 24–200 liter capacity options, enabling flexible on-site use.
Equipment & Features
- Fill volume 24–200 liters selectable
- Pneumatic or electric remote control
- Pressure regulator and self-closing fill cone
- Connection fittings, blast hose with blast nozzle
- Injector: mineral and organic blast media
- Pressure/Low-pressure/Dust-free: also metallic blast media
- Low-pressure: gentle blasting process with fine abrasives
Technical Data
| Fill volume | 24–200 liters |
|---|---|
| Configurations | Injector/Pressure/Low-pressure/Dust-free |
| Control | Pneumatic or electric (remote control) |
| Application | Mobile – flexible on-site use |
Optional Accessories
- Abrasive sieve, lid, hose extensions, water separator

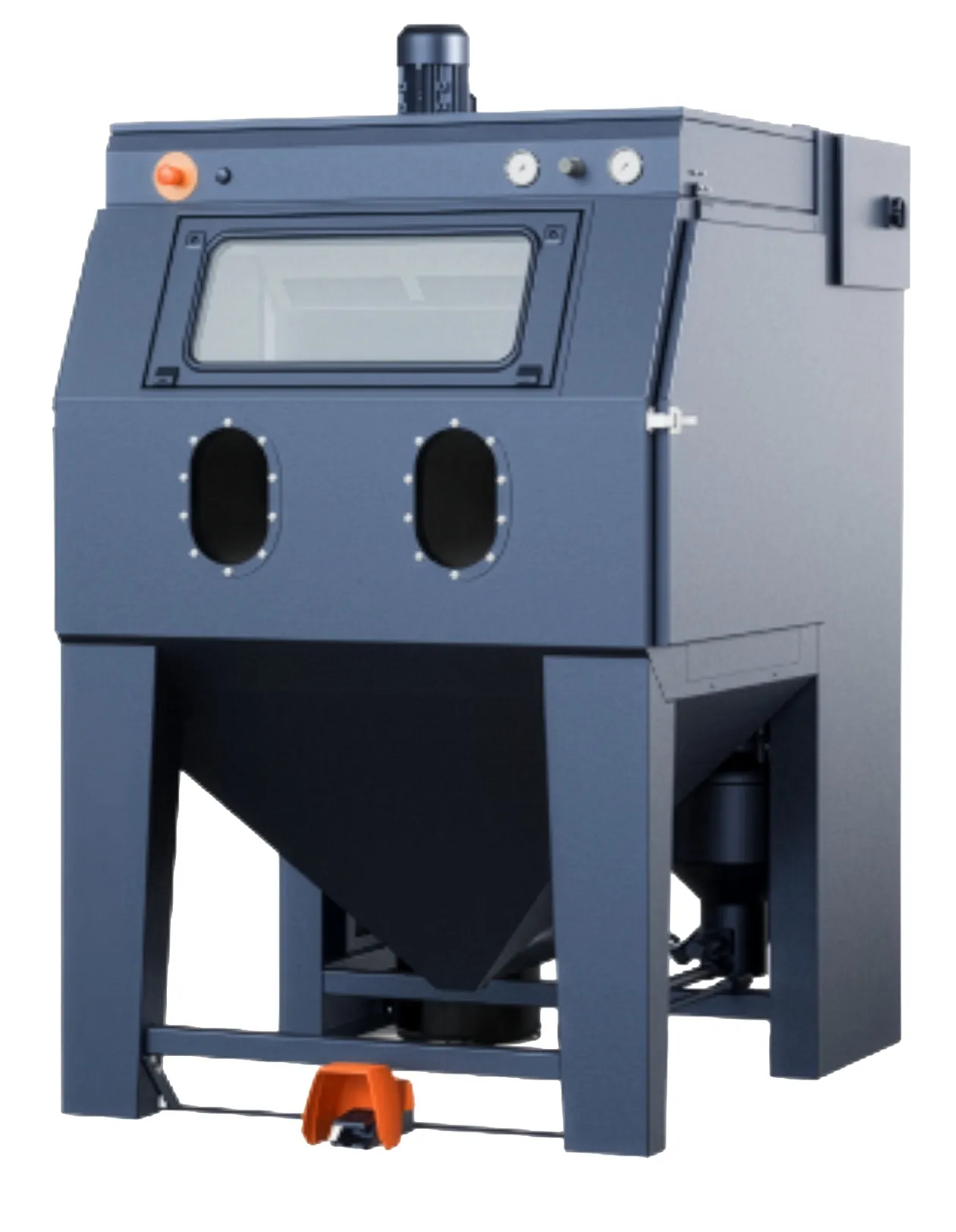

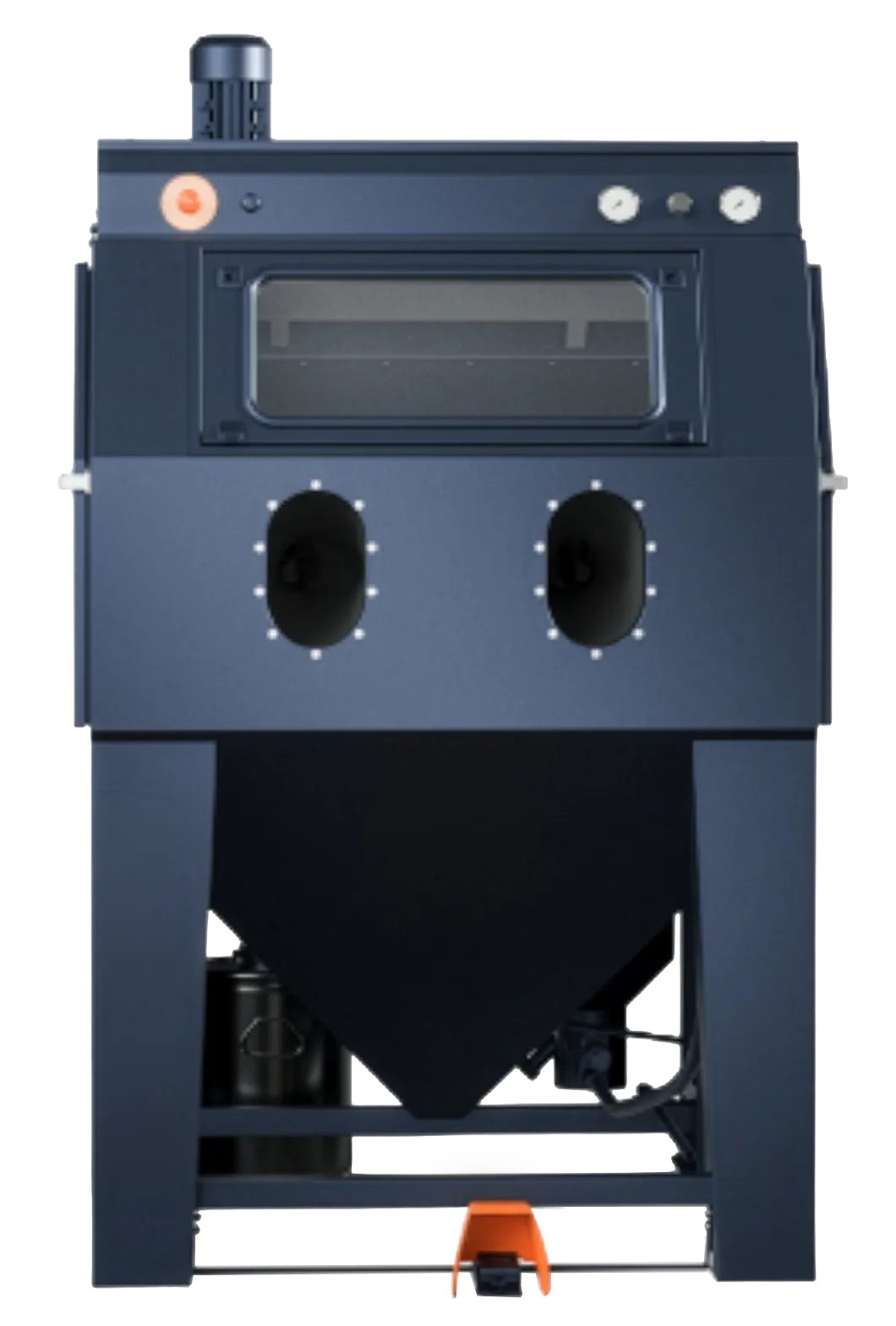

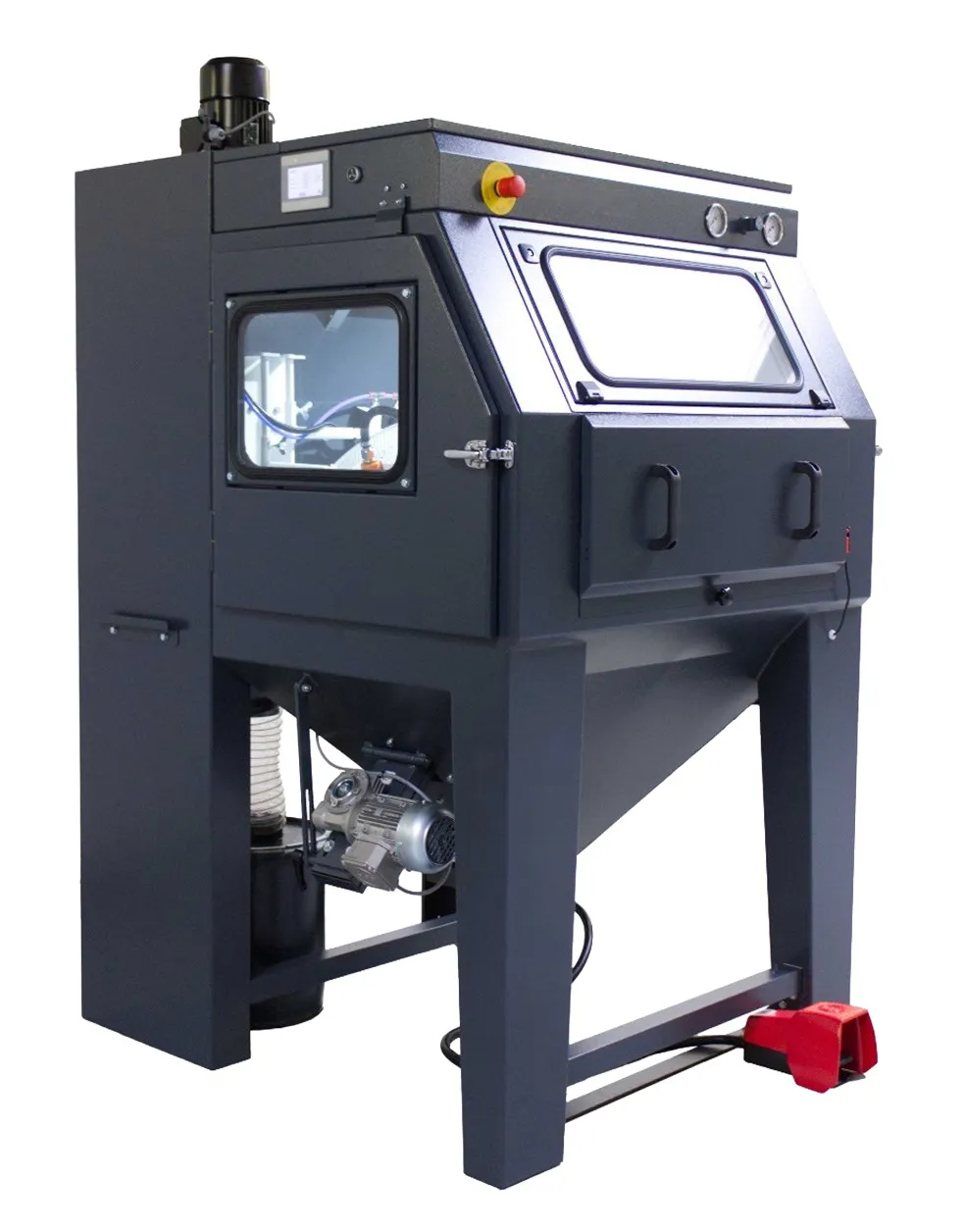

WR – Professional Blast Cabinets Type NI and NP
Dust-tight professional blast cabinets for industrial use, available in injector (NI) or pressure blast (NP) configurations with integrated abrasive preparation.
Equipment & Features
- Type NI: Injector method | Type NP: Pressure blast method
- Abrasive preparation system (cyclone)
- Magnetic separator
- Powerful extraction unit with cartridge filter
- Bright, glare-free lighting
- Wear-resistant large gloves, permanently attached to the cabinet
- 2 side dust-tight doors with safety lock
- Low-wear and low-maintenance construction
Technical Data
| Type NI (Injector) min. | 1105 × 800 × 800 mm |
|---|---|
| Type NI (Injector) max. | 1370 × 940 × 830 mm |
| Type NP (Pressure) min. | 1170 × 940 × 885 mm |
| Type NP (Pressure) max. | 2200 × 1400 × 1090 mm |
Arbeitsraummasse nach Typ
| Typ | Arbeitsraum min. | Arbeitsraum max. |
|---|---|---|
| Typ NI (Injektor) | 1105 × 800 × 800 mm | 1370 × 940 × 830 mm |
| Typ NP (Druck) | 1170 × 940 × 885 mm | 2200 × 1400 × 1090 mm |
Maße in B × T × H mm.
Optional Accessories
- Rotating basket for small parts
- Loading platform/turntable
- Door locks
- Gun holder
- HEPA filter/exhaust
- Automation solutions

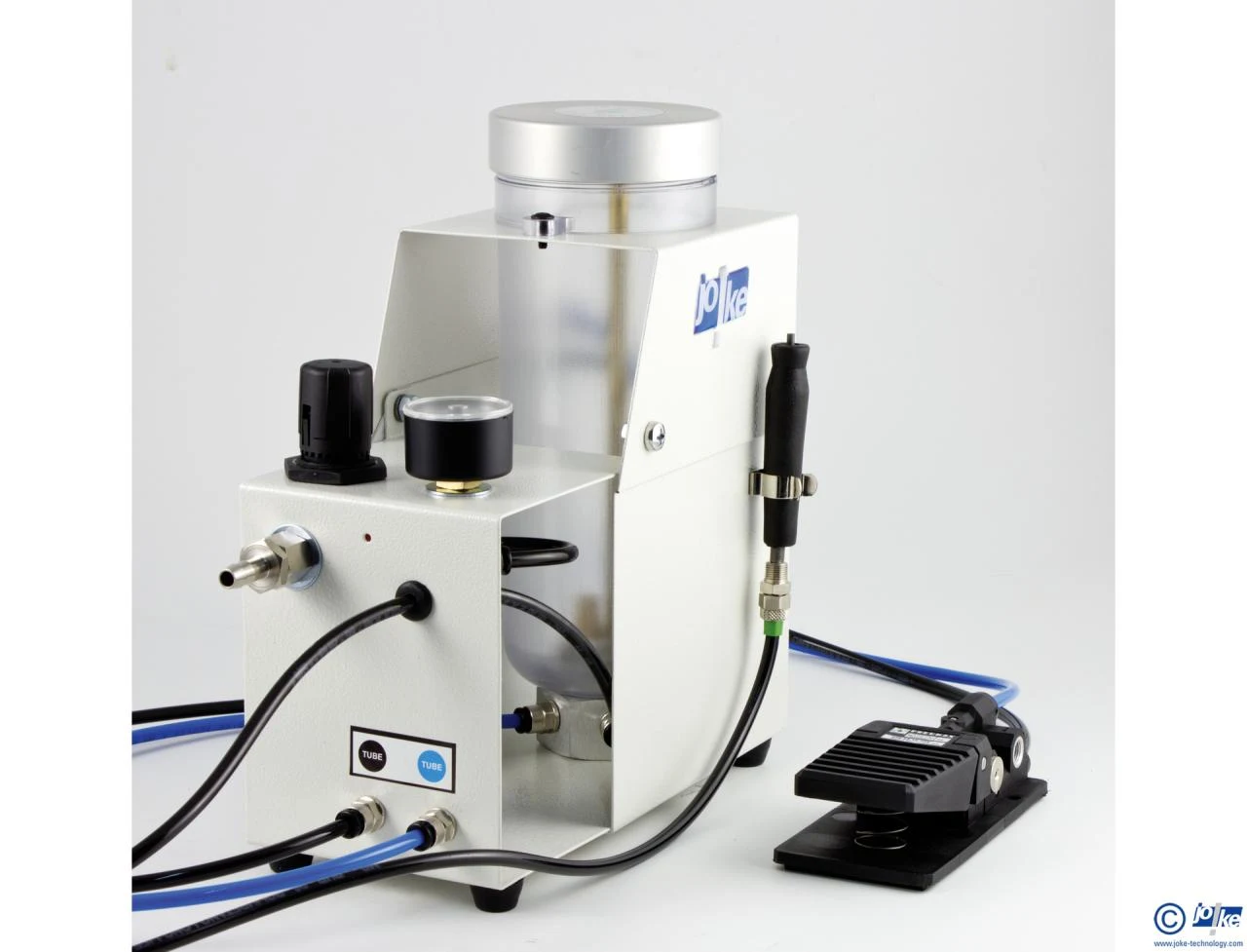

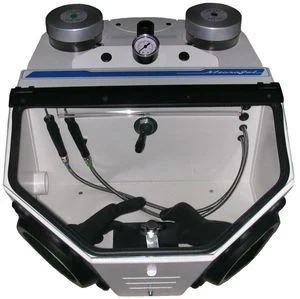

WR – Micro Fine Blasting Technology
Compact small blast units using the pressure blast principle, designed exclusively for mineral abrasives up to 250 µm particle size for precision fine-blasting work.
Equipment & Features
- Pressure blast principle – exclusively for mineral abrasives up to 250 µm
- Tungsten carbide nozzle 0.8–1.5 mm for precision work
- WR-JK 1 Single: optional add-on unit with foot pedal
- WR-JK 2: compact version with lighting and foot switch
- WR-JK 2 usable as standalone bench-top blast cabinet
- Option: 2 abrasive containers + 2 nozzles
Technical Data
| Blast principle | Pressure blast |
|---|---|
| Max. grain size | 250 µm (mineral abrasives) |
| Nozzle size | 0.8–1.5 mm (tungsten carbide) |
| Types | WR-JK 1 Single / WR-JK 2 Compact |

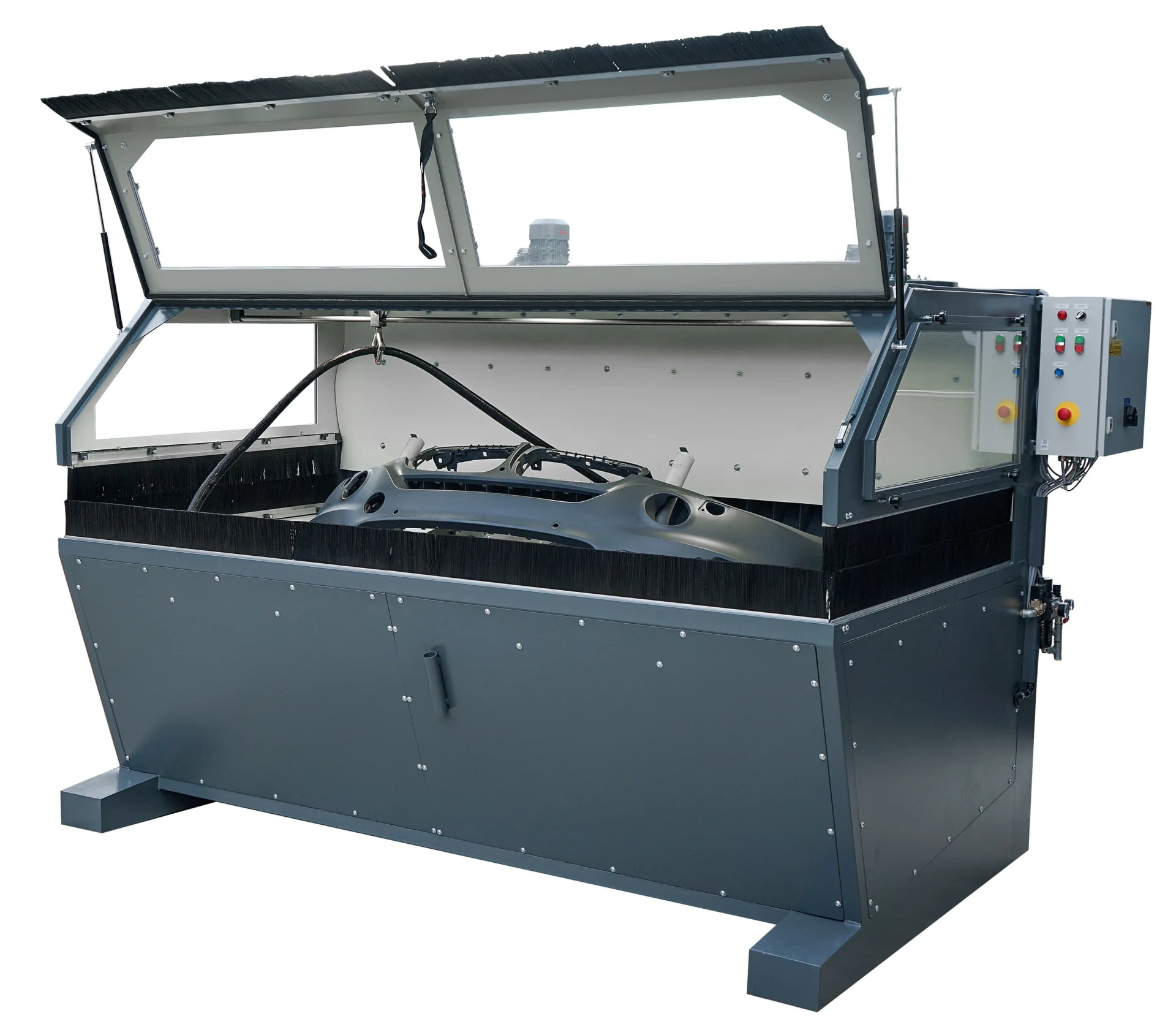

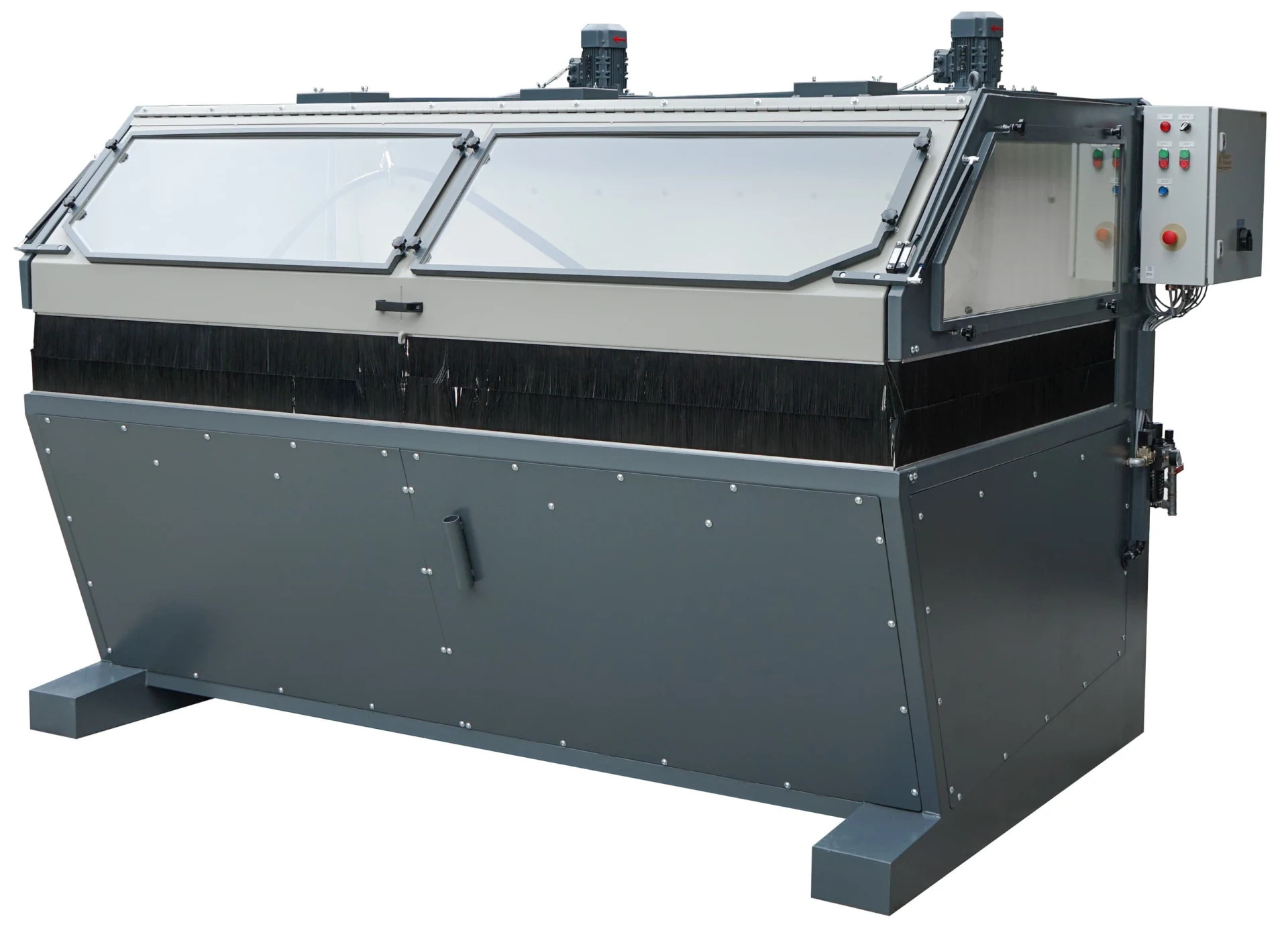

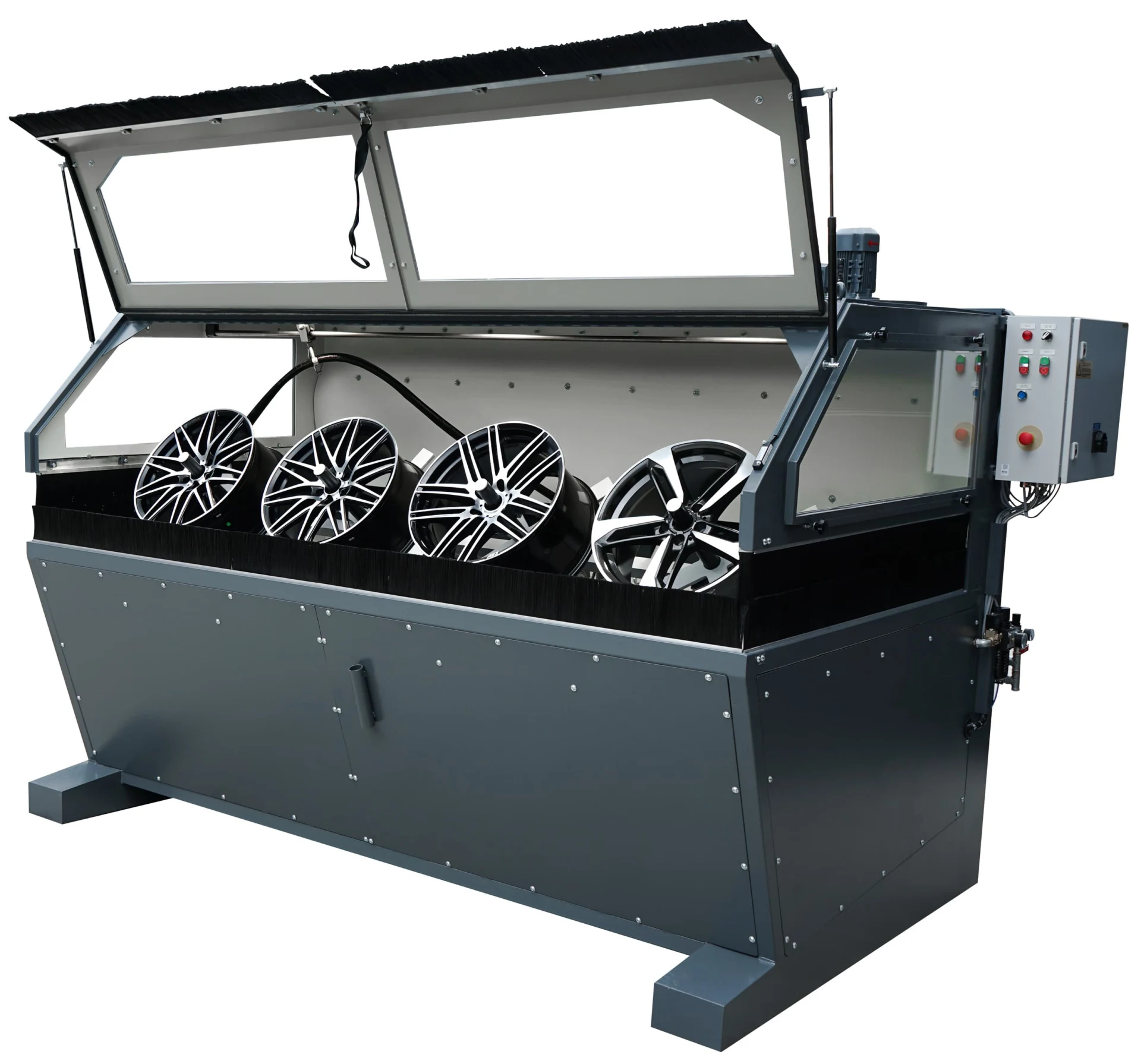

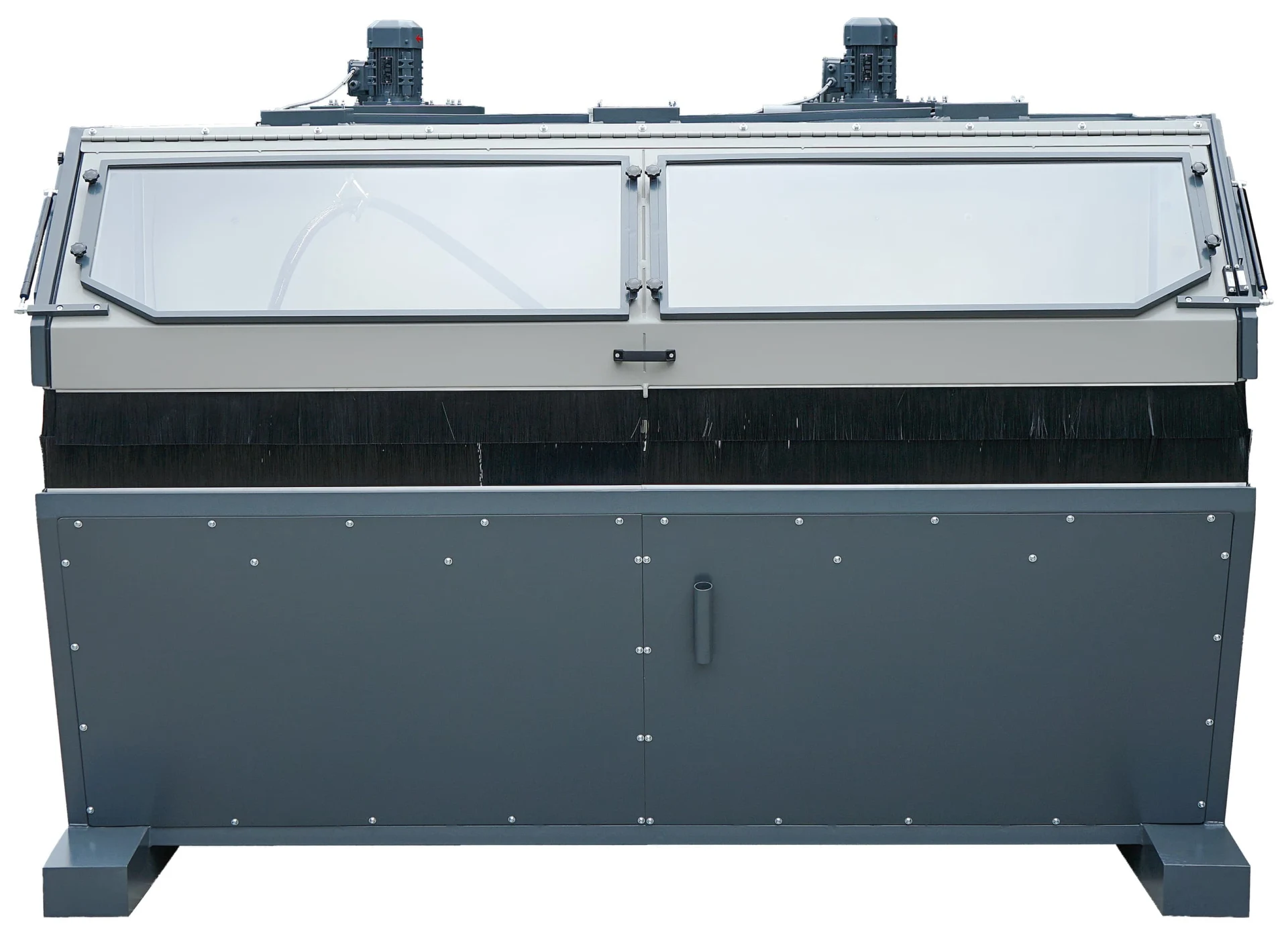

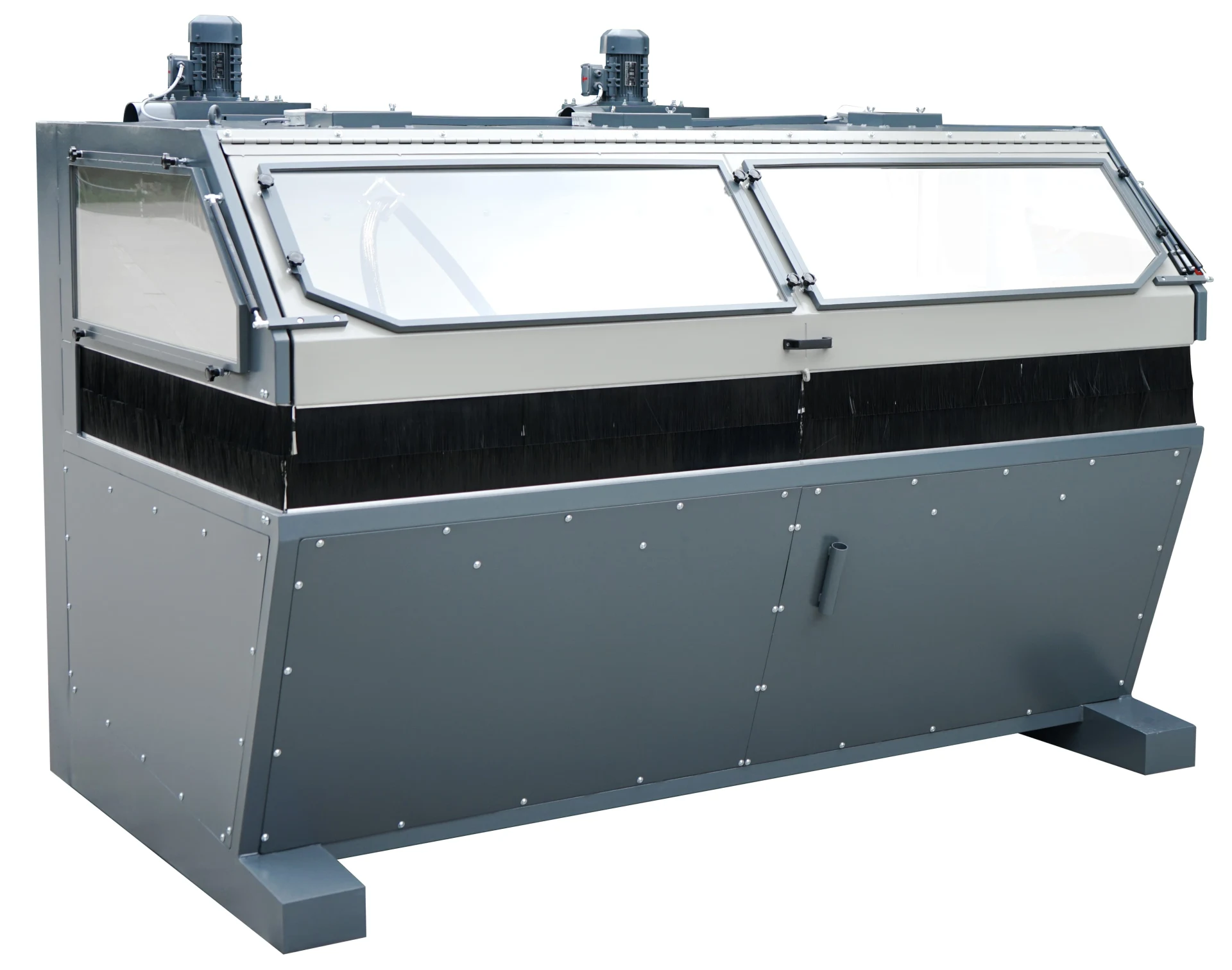

WR – Automotive Blaster
Economical high-performance blast system specially designed for body shops and paint shops, featuring a unique eddy current rotation method for uniform matting with 6–8× time savings vs. manual processing.
Equipment & Features
- Eddy current rotation method – consistent, uniform matting
- Electrically swiveling workpiece mount – quickly interchangeable
- Carriage for horizontal movement in all directions
- 2 blasting positions at the front ends
- Double glazing (real glass + plexiglass)
- Bright LED lighting
- Blow-off gun for cleaning parts
- 2 filter cartridges (2 × 14 m² filter area)
- All viewing windows with 2-pane system in quick-change frame
- Circumferential brush seal also on front ends
Technical Data
| Article no. | WHE50100 |
|---|---|
| Electrical connection | 400 V / 16 A |
| Rated power | 2 × 1.1 kW |
| Protection class | IP 54 |
| Filter area | 2 × 14 m² |
| Compressed air connection | 2–10 bar / approx. 900–1,000 l/min |
| Processing method | Eddy current rotation method |
| Work space | approx. 2,800 × 1,500 × 1,200 mm (W×D×H) |
| Dimensions (W×D) | approx. 3,000 × 2,350 mm |
| Height closed/open | approx. 2,200 / 2,550 mm |
| Weight | 1,400 kg |
Optional Accessories
- 4-way rim mount (up to 24", ball-bearing, rotatable and adjustable)

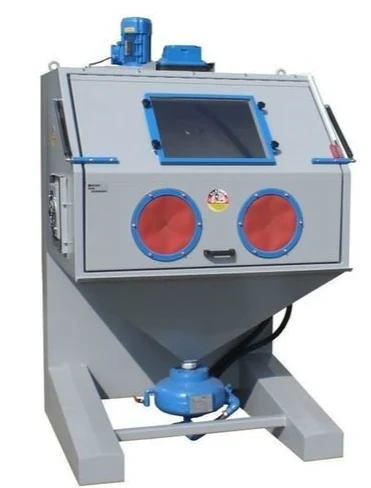

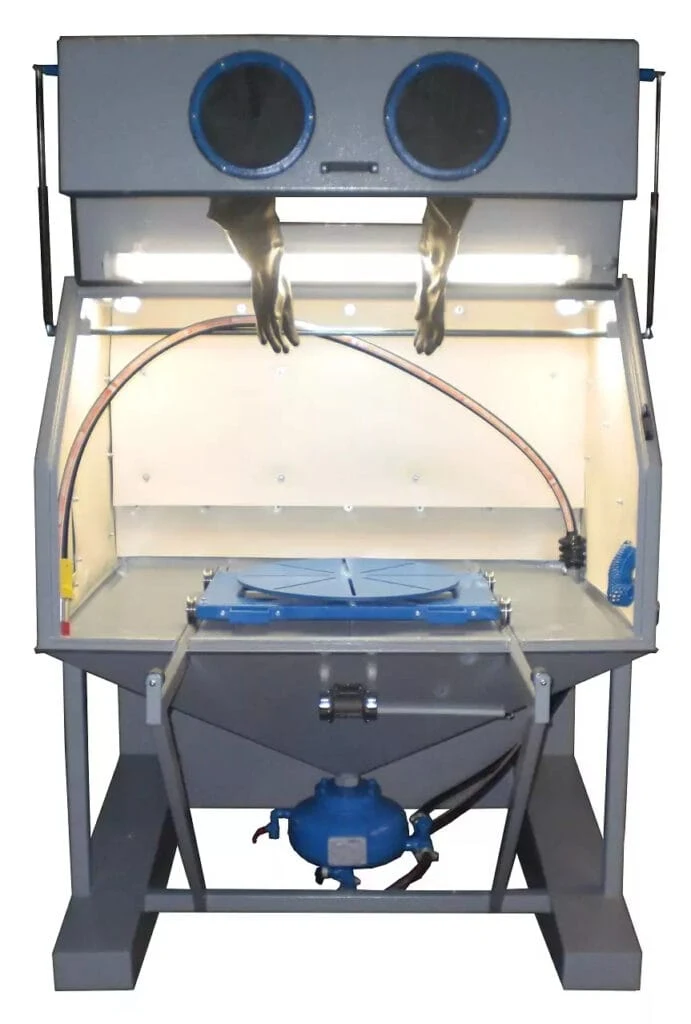

WR – Business Blast Cabinets Type GL
Space-saving, dust-tight vacuum blast cabinet in compact design, available in injector or pressure configurations for versatile shop use and paint preparation applications.
Equipment & Features
- Dust-tight vacuum cabinet in compact design
- Injector or pressure blast configuration selectable
- Large, stable front door with gas pressure springs
- Door safety switch
- 2 access openings with double rubber seal
- High-performance blast head with tungsten carbide nozzle
- Integrated abrasive hopper with dosing regulator
- Bright blast chamber lighting
- Cartridge filter unit with extraction motor on cabinet rear wall
Available Models – Work Space Interior Dimensions
| Model | Width | Depth | Height | Filter |
|---|---|---|---|---|
| ECO/DSK 1000 | 1,000 mm | 900 mm | 900 mm | 0.55 kW |
| ECO/DSK 1250 | 1,250 mm | 900 mm | 900 mm | 0.55 kW |
| ECO/DSK 1500 | 1,500 mm | 1,150 mm | 900 mm | 1.1 kW |
| ECO/DSK 2000 | 2,000 mm | 1,150 mm | 900 mm | 1.1 kW |
Total cabinet height (all models): 2,200 mm
Optional Accessories
- Abrasive preparation systems
- Turntable with or without loading platform
- Gun holder
- Workpiece blow-off gun
- Wear protection lining

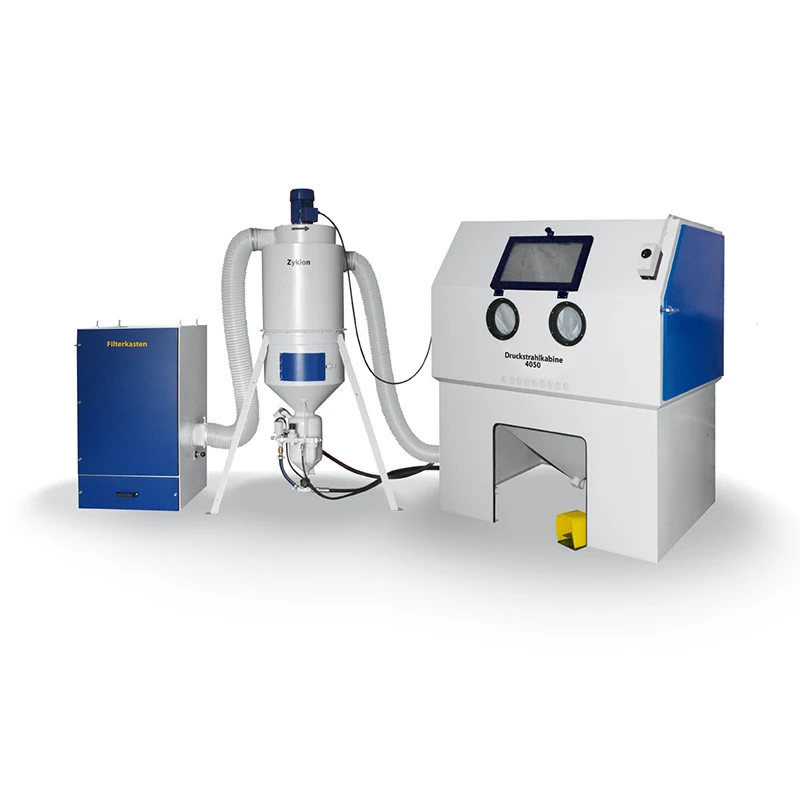

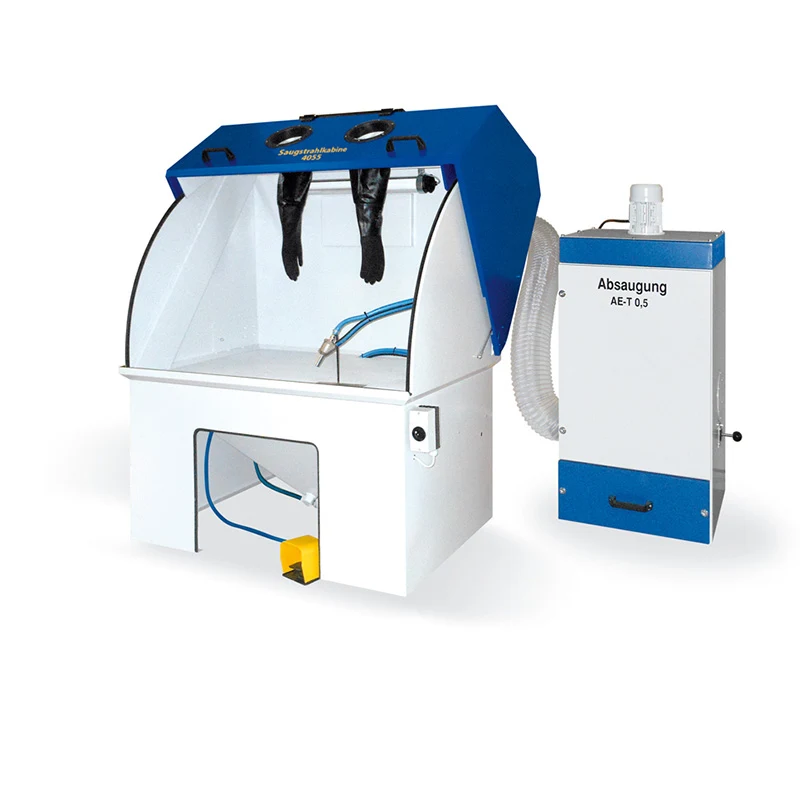

WR – Business Blast Cabinets Type RR
High-performance industrial blast cabinets (Type RR) for regular commercial and industrial use with injector or pressure options, featuring bright cabin lighting and powerful extraction.
Equipment & Features
- Injector or pressure blast configuration selectable
- Loading via side doors or front flap
- Bright cabin lighting
- Powerful extraction and filter unit
- Delivered completely ready for connection
- Suitable for mineral and organic blast media
- Pressure version: also for metallic reusable blast media
- Designed for regular industrial continuous use
Technical Data
| Work space min. | 680 × 490 × 530 mm (W × D × H) |
|---|---|
| Work space max. | 1,515 × 1,340 × 1,185 mm (W × D × H) |
Optional Accessories
- Abrasive preparation systems
- Turntable with loading platform
- Turntable without loading platform
- Gun holder
- Workpiece blow-off gun
- Wear protection lining
Consultation & Quotation
We help you find the right blast machine for your requirements.
Contact us – no obligation, always personal.
